DOSING PUMP
LMI Milton Roy is one of the leading manufacturers of Chemical Metering Pumps, Controllers, and accessories. They manufacture a wide range of electronic and motor-driven metering pumps and controllers which may be used in a variety of ways – from simple chemical addition, to complete systems that control conductivity, pH, and ORP.
LMI Milton Roy has been providing quality products and service to the water treatment industry worldwide for over 25 years. Their products are designed and manufactured in ISO9001:2000 facilities throughout the world for reliable, dependable operation in a variety of applications.
PRODUCT RANGE
P Series
P+ Series
G Series
For other product range
please download LMI Milton Roy catalog
For other product range
please download LMI Milton Roy catalog

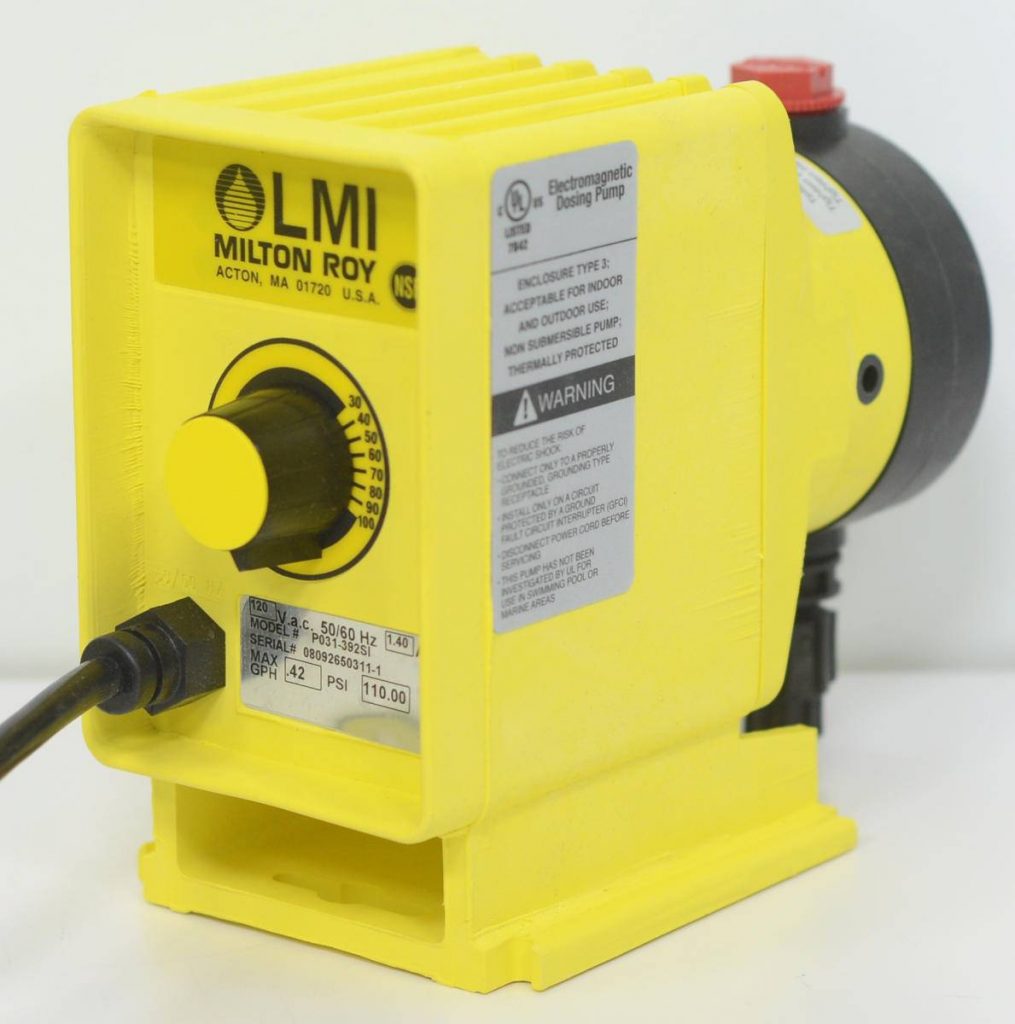

P Series
The LMI Milton Roy Series P electromagnetic solenoid driven diaphragm pumps have manually adjustable stroke length control providing accurate pump output adjustment. The time tested electronics are totally encapsulated for protection against moisture and corrosive conditions, owing to the reliable, repeatable performances. NEMA 4X / IP65 enclosures ensure protection against corrosive environments. The priming valves have Fluorofilm® diaphragms and ramp style knobs for hands free priming.
| No. | Model | Max Flow Rate | Max Pressure | Control | Voltage | Head Material | Liquid End Type |
| 1 | P023-358TI | 0.79 l/h | 10 bar | Manual Control | 220-240V DIN Plug | Molded Head | PVC |
| 2 | P033-398TI | 1.6 l/h | 7.6 bar | Manual Control | 220-240V DIN Plug | Molded Head | PVC |
| 3 | P043-358TI | 2.2 l/h | 17 bar | Manual Control | 220-240V DIN Plug | Molded Head | PVC |
| 4 | P053-398TI | 3.8 l/h | 7.6 bar | Manual Control | 220-240V DIN Plug | Molded Head | PVC |
| 5 | P063-368TI | 7.6 l/h | 3.4 bar | Manual Control | 220-240V DIN Plug | Molded Head | PVC |
SPECIFICATION TABLE
P+ Series
The new generation of LMI electromagnetic pumps is light and reliable and can be used for a wide range of applications in both aggressive environments and outdoor settings. With four models and a wide range of liquid end materials available, the ROYTRONIC will adapt to your every need.
BENEFIT
- Economical
- Suitable for incorporation into a client system (OEM)
- Easy to install and use
- Fast commissioning – priming takes
- just a few seconds
- Fully compatible with most chemicals
- Flow rate adjustable from 1 to 1,000 ensures that process requirements are accurately met
| No. | Model | Max Flow Rate | Max Pressure | Control | Voltage | Head Material | Liquid End Type |
| 1 | P+013-718NI | 1 l/h | 20.7 bar | Manual Control | 220-240V DIN Plug | Molded Head | PVC |
| 2 | P+043-718NI | 1.9 l/h | 17.2 bar | Manual Control | 220-240V DIN Plug | Molded Head | PVC |
| 3 | P+053-728NI | 3.8 l/h | 7.6 bar | Manual Control | 220-240V DIN Plug | Molded Head | PVC |
| 4 | P+063-738NI | 7.6 l/h | 3.4 bar | Manual Control | 220-240V DIN Plug | Molded Head | PVC |
SPECIFICATION TABLE
G Series
Series G™ dosing pumps are electric motor-driven pumps with mechanical diaphragm liquid ends. Simple, economical and rugged, they offer great flexibility and a wide selection of liquid ends compatible with most chemicals. With a corrosion-resistant plastic or aluminium housing, depending on the model, they are based on two technologies previously only used for intensive-use industrial pumps: variable eccentric drive and stroke adjustment.
Series G™ is made up of three dosing pump models, covering a very wide flow range (up to 1,800 l/h) at an excellent quality-price ratio.
FEATURES & BENEFITS
- Mechanical actuated diaphragm design
- Eliminate contour plates,easy for material pass
- PVC, PVDF & 316SS liquid end material
- High viscolity,slurry application
- Self-cleaning suction/discharge check valve
1. GM Series
| No. | Model | Max Flow Rate | Max Pressure | Control | Motor | Connection | Liquid End Type |
| 1 | GM0002PPAMNN | 2.25 l/h | 12 bar | Varipulse® Controller | 0.25Kw 3 phase 380 Volt 50 Hz / IP55 / TEFC / IEC71 / B5 1500 rpm | NPT | PVC |
| 2 | GM0005PPAMNN | 4.5 l/h | 12 bar | Varipulse® Controller | 0.25Kw 3 phase 380 Volt 50 Hz / IP55 / TEFC / IEC71 / B5 1500 rpm | NPT | PVC |
| 3 | GM0010PPAMNN | 9 l/h | 12 bar | Varipulse® Controller | 0.25Kw 3 phase 380 Volt 50 Hz / IP55 / TEFC / IEC71 / B5 1500 rpm | NPT | PVC |
| 4 | GM0025PPAMNN | 25 l/h | 10 bar | Varipulse® Controller | 0.25Kw 3 phase 380 Volt 50 Hz / IP55 / TEFC / IEC71 / B5 1500 rpm | NPT | PVC |
| 5 | GM0050PPAMNN | 50 l/h | 10 bar | Varipulse® Controller | 0.25Kw 3 phase 380 Volt 50 Hz / IP55 / TEFC / IEC71 / B5 1500 rpm | NPT | PVC |
| 6 | GM0090PPAMNN | 85 l/h | 7 bar | Varipulse® Controller | 0.25Kw 3 phase 380 Volt 50 Hz / IP55 / TEFC / IEC71 / B5 1500 rpm | NPT | PVC |
| 7 | GM0120PPAMNN | 115 l/h | 7 bar | Varipulse® Controller | 0.25Kw 3 phase 380 Volt 50 Hz / IP55 / TEFC / IEC71 / B5 1500 rpm | NPT | PVC |
| 8 | GM0170PPAMNN | 170 l/h | 7 bar | Varipulse® Controller | 0.25Kw 3 phase 380 Volt 50 Hz / IP55 / TEFC / IEC71 / B5 1500 rpm | NPT | PVC |
| 9 | GM0240PPAMNN | 235 l/h | 7 bar | Varipulse® Controller | 0.25Kw 3 phase 380 Volt 50 Hz / IP55 / TEFC / IEC71 / B5 1500 rpm | NPT | PVC |
| 10 | GM0330PPAMNN | 315l/h | 5 bar | Varipulse® Controller | 0.25Kw 3 phase 380 Volt 50 Hz / IP55 / TEFC / IEC71 / B5 1500 rpm | NPT | PVC |
SPECIFICATION TABLE
2. GB Series
| No. | Model | Max Flow Rate | Max Pressure | Control | Motor | Connection | Liquid End Type |
| 1 | GB0080PPAMNN | 82 l/h | 10 bar | Varipulse® Controller | 0.55Kw 3 phase 380 Volt 50 Hz / IP55 / TEFC / IEC71 / B5 1500 rpm | NPT | PVC |
| 2 | GB0180PPAMNN | 167 l/h | 10 bar | Varipulse® Controller | 0.55Kw 3 phase 380 Volt 50 Hz / IP55 / TEFC / IEC71 / B5 1500 rpm | NPT | PVC |
| 3 | GB0250PPAMNN | 237 l/h | 10 bar | Varipulse® Controller | 0.55Kw 3 phase 380 Volt 50 Hz / IP55 / TEFC / IEC71 / B5 1500 rpm | NPT | PVC |
| 4 | GB0350PPAMNN | 334 l/h | 10 bar | Varipulse® Controller | 0.55Kw 3 phase 380 Volt 50 Hz / IP55 / TEFC / IEC71 / B5 1500 rpm | NPT | PVC |
| 5 | GB0450PPAMNN | 418 l/h | 10 bar | Varipulse® Controller | 0.55Kw 3 phase 380 Volt 50 Hz / IP55 / TEFC / IEC71 / B5 1500 rpm | NPT | PVC |
| 6 | GB0500PPAMNN | 464 l/h | 7 bar | Varipulse® Controller | 0.55Kw 3 phase 380 Volt 50 Hz / IP55 / TEFC / IEC71 / B5 1500 rpm | NPT | PVC |
| 7 | GB0600PPAMNN | 583 l/h | 7bar | Varipulse® Controller | 0.55Kw 3 phase 380 Volt 50 Hz / IP55 / TEFC / IEC71 / B5 1500 rpm | NPT | PVC |
